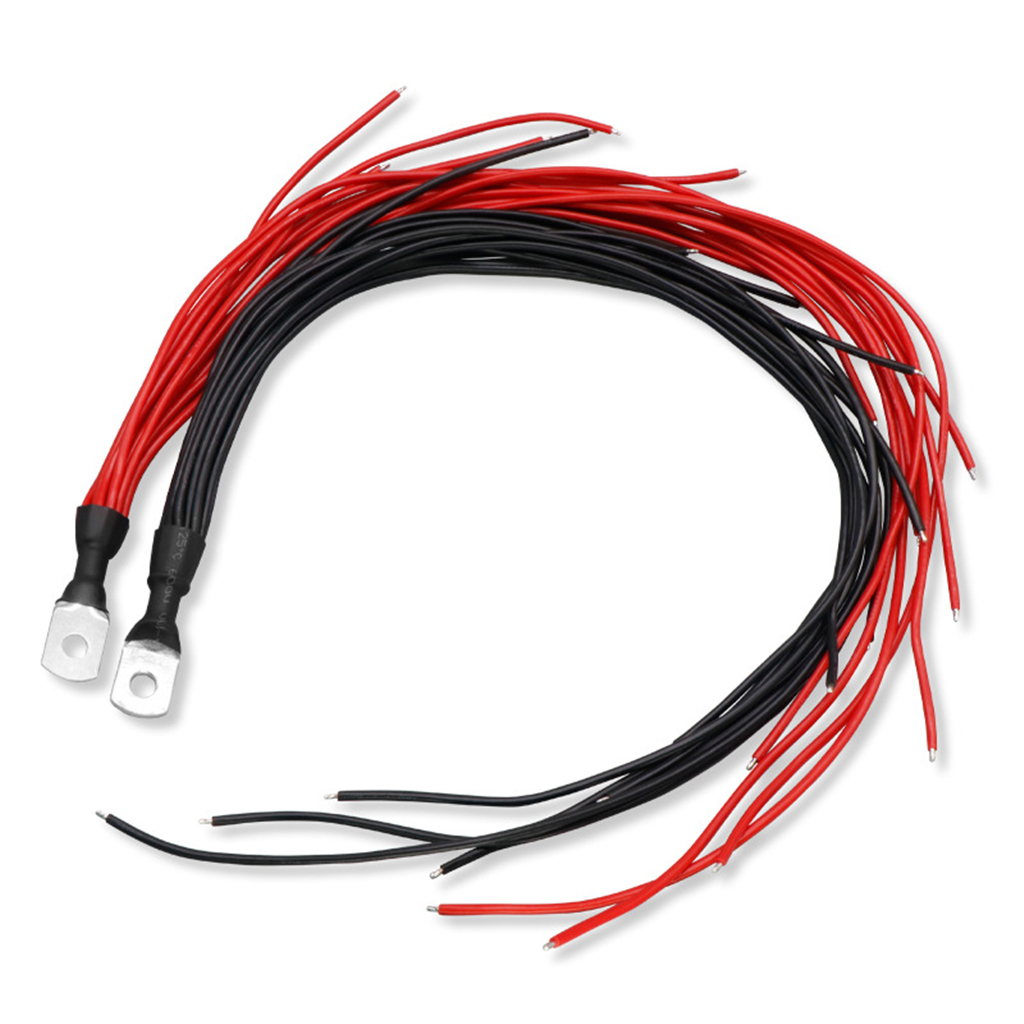

50mm² High-Power Lithium Battery Connection Cable (SC50-8 Copper Lug, Inverter Wire Harness):
Product Overview
The 50mm² High-Power Lithium Battery Connection Cable is a heavy-duty electrical harness designed for high-current applications in lithium battery systems, inverters, and renewable energy setups. It features tinned copper conductors, color-coded insulation (red/black), and SC50-8 copper lug terminals for secure, low-resistance connections.
Key Features
-
High-Current Capacity
-
50mm² cross-sectional area supports currents up to ~300A (depending on insulation rating and ambient conditions).
-
Ideal for inverters, EV battery packs, and solar storage systems.
-
-
Premium Materials
-
Conductor: High-purity tinned copper for superior conductivity and corrosion resistance.
-
Insulation: Flame-retardant, flexible PVC or XLPE material (temperature range: -40°C to +105°C).
-
Terminals: SC50-8 copper lugs with precision crimping for minimal voltage drop.
-
-
Polarity Identification
-
Red (positive) and black (negative) wires for intuitive installation and safety compliance.
-
-
Durability
-
Resistant to abrasion, oils, and UV exposure (suitable for indoor/outdoor use).
-
Flexible design for easy routing in tight spaces.
-
Technical Specifications
| Parameter | Details |
|---|---|
| Conductor | Tinned copper (50mm²) |
| Insulation | PVC/XLPE (600V rating) |
| Lug Type | SC50-8 (8mm hole diameter) |
| Current Rating | ~250–300A (continuous) |
| Temperature | -40°C to +105°C |
| Standards | Complies with IEC, UL, or RoHS (varies by manufacturer). |
Applications
-
Lithium Battery Systems: Connects battery banks to inverters/BMS.
-
Solar Power: Links solar panels, charge controllers, and storage units.
-
Electric Vehicles (EVs): High-voltage wiring for battery-to-motor connections.
-
Industrial Equipment: Heavy machinery, UPS systems, and backup power.
Installation & Safety
-
Crimping: Use hydraulic crimpers for SC50-8 lugs to ensure gas-tight connections.
-
Routing: Avoid sharp bends; secure with cable ties/clamps.
-
Maintenance: Inspect for wear, corrosion, or overheating periodically.
-
Warning:
-
Do not exceed rated current.
-
Verify polarity before energizing.
-
Deploy by qualified personnel only.
-
Why Choose This Cable?
-
Efficiency: Low resistance minimizes power loss.
-
Reliability: Robust construction for long-term use in harsh environments.
-
Safety: Flame-retardant insulation and secure terminals reduce risks.
This cable is a critical component for high-power DC systems, ensuring safe, efficient, and durable power transmission. For specific certifications or custom lengths, consult the manufacturer.
