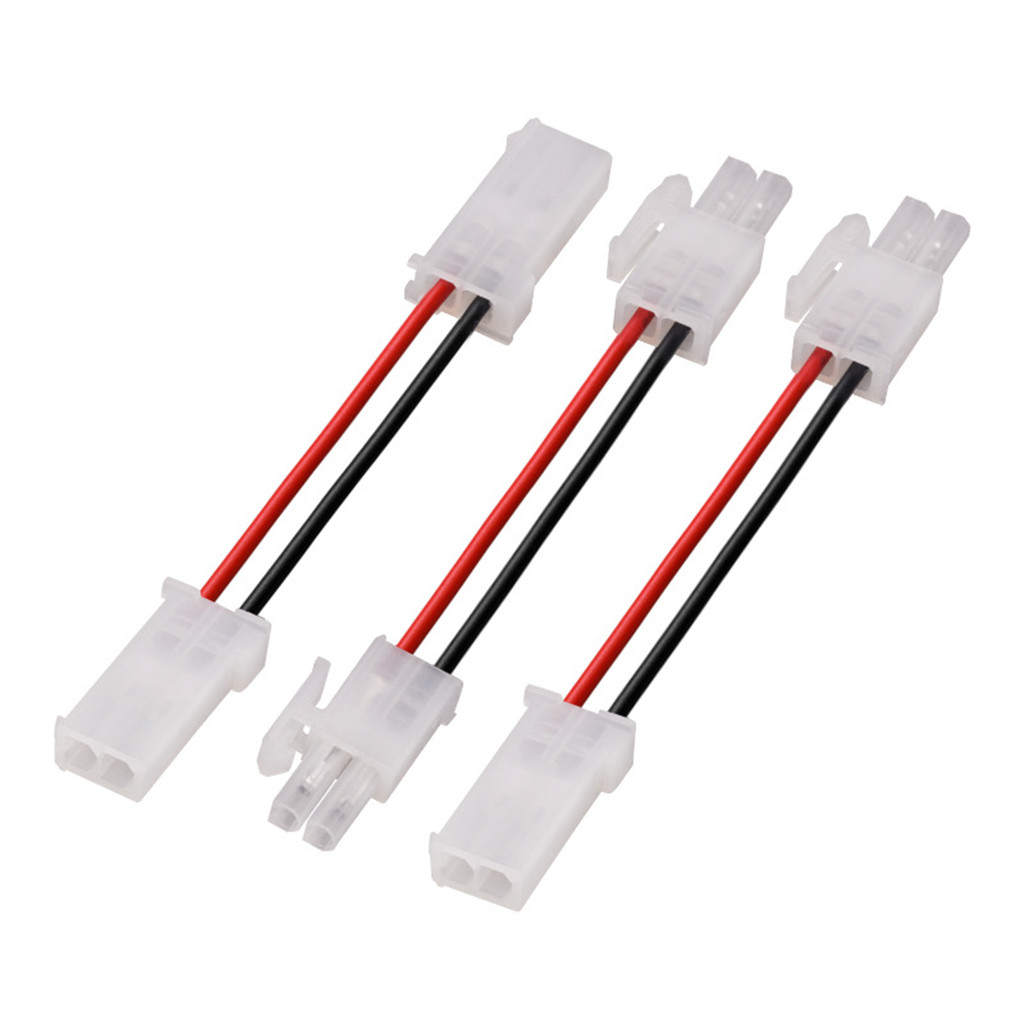

FL-2P Male/Female Connector Cable – 1007-20# Red & Black Wire – Electronic Terminal Wire Harness
Product Overview
This FL-2P male/female connector cable is a 2-pin (2P) wire harness designed for secure electrical connections in low-voltage DC circuits. It consists of a mating plug and socket (male and female ends), ensuring easy and reliable connections for electronic devices. The cable features UL1007-rated 20 AWG red and black wires, making it suitable for power transmission, signal wiring, and internal electronics applications.
Key Features & Specifications
1. FL-2P Connector
-
Type: 2-pin (2P) male and female mating connector.
-
Gender:
-
Male (Plug): Typically has exposed metal pins.
-
Female (Socket): Designed to receive the male connector securely.
-
-
Housing Material: Usually plastic (PA66, PVC, or PBT) for insulation and durability.
-
Terminal Type: May use crimp terminals, solder cups, or IDC (Insulation Displacement Connector) contacts.
-
Locking Mechanism: Some versions include friction locks, latches, or snap-fit designs for secure mating.
2. 1007-20# Wire
-
UL1007 Certification:
-
Conductor: Stranded bare copper (flexible, resistant to breakage).
-
Insulation: PVC (Polyvinyl Chloride), providing good electrical insulation.
-
Voltage Rating: 300V.
-
Temperature Range: -20°C to +80°C (-4°F to +176°F).
-
Flame Resistance: Self-extinguishing (passes UL VW-1 flame test).
-
-
Wire Gauge: 20 AWG (American Wire Gauge)
-
Diameter: ~0.812 mm.
-
Cross-Section: ~0.52 mm².
-
Current Capacity: ~1.5A (at 80°C).
-
3. Red & Black Wiring
-
Standard Color Coding:
-
Red Wire: Typically positive (+) power line (VCC, +5V, +12V, etc.).
-
Black Wire: Typically negative (-) ground line (GND, 0V).
-
-
Polarity Identification: Helps prevent reverse connections in DC circuits.
4. Connector Pinout & Wiring
-
2-Pin Configuration:
-
Pin 1 (Red): Power (+)
-
Pin 2 (Black): Ground (-)
-
-
Customizable: Some versions allow pin swapping if needed.
Applications & Common Uses
This wire harness is widely used in:
-
Consumer Electronics:
-
Internal wiring for LED strips, routers, speakers, and small appliances.
-
Power connections for PCB boards, sensors, and control modules.
-
-
Automotive & Marine Electronics:
-
Low-voltage wiring for dash cams, LED lighting, and audio systems.
-
-
DIY & Prototyping:
-
Breadboard connections, Arduino/Raspberry Pi projects.
-
-
Industrial Control Systems:
-
Signal transmission in relays, switches, and automation devices.
-
Advantages
✔ Secure Connection – Male/female design prevents accidental disconnections.
✔ Flexible & Durable – Stranded copper ensures bend resistance.
✔ Safety Certified – UL1007-rated for flame resistance and electrical safety.
✔ Easy Identification – Red/black color coding simplifies wiring.
Limitations & Considerations
⚠ Current Limit: 20 AWG is best for low-current (<3A) applications; higher currents require thicker wires (e.g., 18 AWG).
⚠ Temperature Sensitivity: Not suitable for high-heat environments (>80°C).
⚠ Voltage Limitation: Only rated for 300V max (not for AC mains power).
Conclusion
The FL-2P male/female connector cable with 1007-20# red & black wires is a versatile, safe, and cost-effective solution for low-voltage DC wiring in electronics, automotive, and industrial applications. Its UL-certified insulation, flexible stranded copper conductors, and standardized color coding make it ideal for both professional and DIY use.
Would you like recommendations for alternative wire gauges or connector types based on your project requirements?
