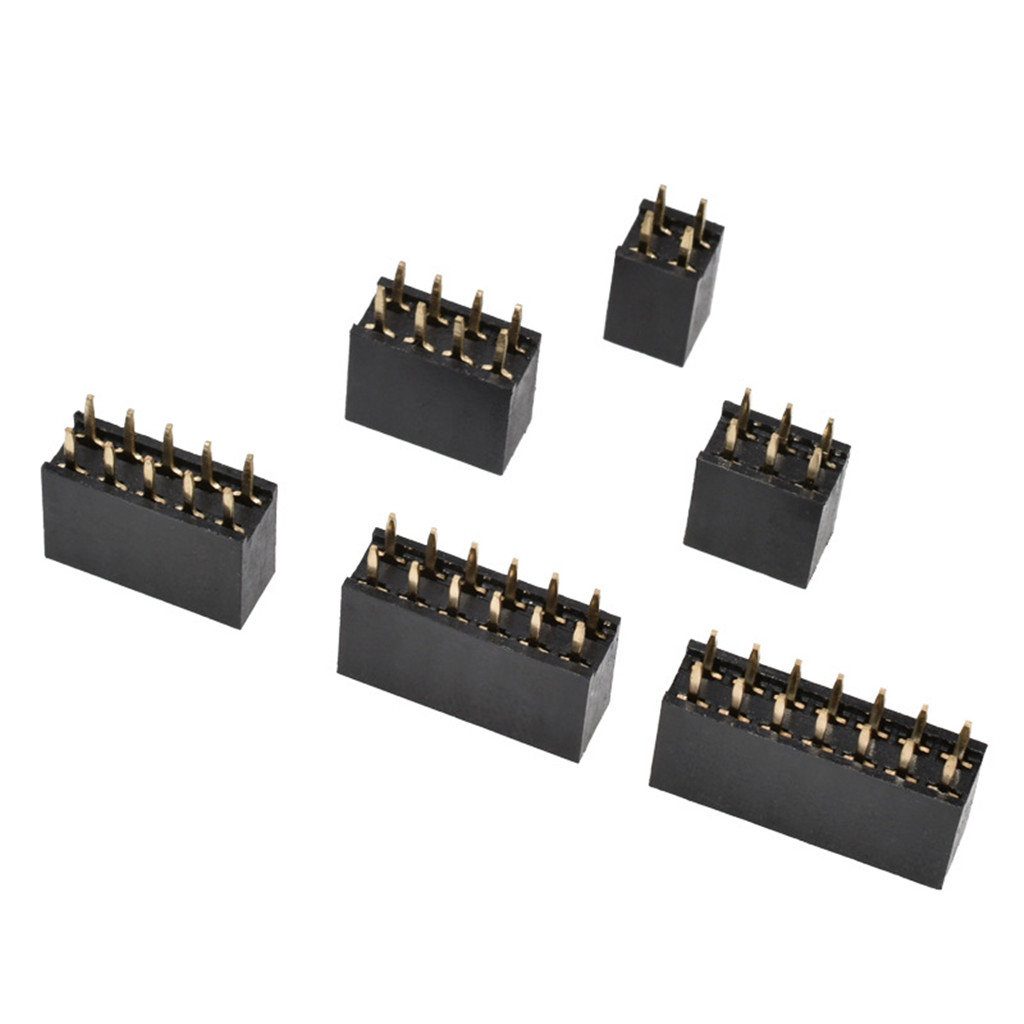

2.54mm Pitch Dual-row Female Header (Straight/Vertical Through-hole, High-temperature resistant, Board-to-Board Connector)
1. General Description
This component is a 2.54mm pitch (0.1-inch pitch) dual-row female header connector, designed for board-to-board (BTB) connections in high-reliability electronic applications. It features:
-
Through-hole (THT) mounting for secure PCB soldering.
-
High-temperature resistance (typically rated for >105°C, with some models supporting 125°C or higher).
-
Standard 2.54mm pin spacing, compatible with male pin headers (e.g., 2×2P to 2×40P).
2. Key Specifications
| Parameter | Description |
|---|---|
| Pitch | 2.54mm (0.1 inch) |
| Rows | Dual-row (2×N, e.g., 2×2P, 2×40P) |
| Current Rating | ~3A/pin (depends on material) |
| Voltage Rating | 250V AC/DC (typical) |
| Contact Material | Phosphor bronze (gold-plated for high reliability) |
| Insulator Material | High-temperature thermoplastic (e.g., PA66, UL94 V-0 flame-retardant) |
| Mounting Type | Vertical (straight) through-hole |
| Operating Temp. | -40°C to +105°C (or up to +125°C for high-temp variants) |
3. Mechanical & Electrical Features
3.1 Housing & Contacts
-
Housing: Black or white high-temperature nylon (PA66), resistant to soldering heat and chemical exposure.
-
Contacts: Female sockets with 4-finger cantilever design for secure mating with male pins.
-
Polarization: May include notches or guide pegs to prevent misalignment.
3.2 Solder Tail
-
Through-hole legs: Tinned for easy soldering to PCBs.
-
Pin length: Typically 3.5mm~4mm below PCB (adjustable for wave/reflow soldering).
3.3 Mating Compatibility
-
Pairs with standard 2.54mm male pin headers (e.g., 2×2P to 2×40P).
-
Stacking height varies based on application (single-PCB or sandwiched designs).
4. Common Configurations (Pins: 2×2P to 2×40P)
| Pin Count (2×N) | Typical Applications |
|---|---|
| 2×2P to 2×6P | Low-pin-count boards (sensors, jumpers) |
| 2×8P to 2×20P | MCU development boards, industrial controls |
| 2×24P to 2×40P | High-density PCB interconnects (servers, power supplies) |
5. Applications
-
Industrial Electronics: PLCs, motor drivers (high-temp resistance critical).
-
Automotive: ECU modules, infotainment systems.
-
Consumer Electronics: Routers, LED displays.
-
Medical Devices: Equipment requiring sterilizable connectors.
6. Advantages
✔ Robustness: Withstands vibration and mechanical stress.
✔ High-Temp Suitability: Ideal for reflow soldering and harsh environments.
✔ Standard Compliance: Meets UL, IEC, and RoHS standards.
7. Purchasing Keywords (for Sourcing)
-
Search terms:
-
*”2.54mm dual-row female header straight THT high-temperature”*
-
“2x40P vertical socket connector PA66”
-
-
Manufacturer P/N examples:
-
Molex: 22-23-2021 (2×2P) / 22-23-2401 (2×40P)
-
TE Connectivity: 5-103960-2 (2×20P)
-
8. Notes for PCB Designers
-
Ensure hole diameter ≥ 0.6mm for smooth insertion.
-
Add keepout zones around mating male headers to avoid short circuits.
-
For high-current apps, reinforce with additional power pins.
